UL SGS RoHS ISO IATF16949 Flexible Circuit Board FPC 1oz Copper Thickness
Professional Manufacturer Of Custom Low Cost High Quality Flexible Circuit Board FPC
One-Stop OEM Service:
If you just have a initial product design,we can provide Electronic circuit Design, PCB Layout, Plastic/Metal mechanical design, Mold / Tooling design & fabrication for you.
PCBA (Pcb Assembly):
• IQC
• automatic solder paste printing
• SPI
• SMT
• Reflow soldering
• AOI
• X-RAY (for BGA)
• ICT testing
• DIP through hole
• Wave soldering
• board cleaning
• Firmware Programming
• Function TestingBoard thickness
FPC Manufacturing capablityn:
| Layer | 1-12L |
| Max.board thickness | 0.23mm-0.4mm |
| Min.board thickness | 0.075mm-0.065mm |
| Board thickness | 0.075mm≤T＜0.35mm |
| Soldermask thickness | Photo sensitive:0.007-0.02mm(0.3-0.8mil) Printed backing:0.01-0.025mm(0.4-1mil) |
| impedance control accuracy±± | ±8% |
| finished thickness | 0.3-3.2MM |
| Max Drill bit Diameter | 6.5mm |
| Min Drill bit Diameter | 0.20mm--0.1 |
| Routing tolerance | ±0.15mm |
| Min Base Copper | 1/3oz |
| Max Base Copper | 2oz |
Application and Development of Rigid Flexible PCB:
CRT has been developing and manufacturing Rigid-Flex PCB since 2010 and has become a Rigid-Flex PCB manufacturer. At present, CRT can mature Manufacturing Rigid-Flex PCB used in automobiles, medical, industrial, and consumer electronics (headphones, mobile phones, e-cigarettes), and can also assist customers in Rigid-Flex PCB design,and CRT has the capability to manufacture pcb ranging from basic single sided boards up to forty layers, and provide one stop turnkey services, including pcb manufacture, assembly, components sourcing and function testing.

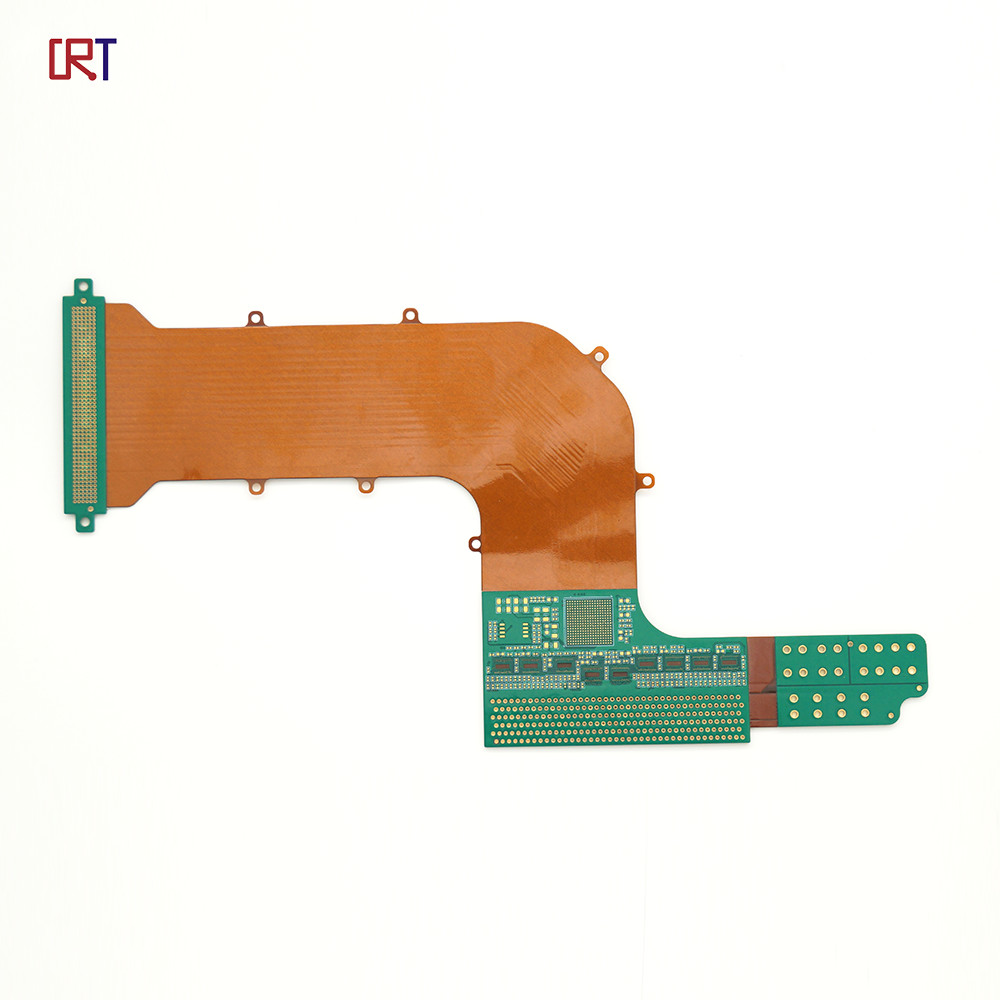

Product Image:
FAQ:
1.What is needed for PCB PCBA quotation?
PCB(printed circuit board): Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA(printed circuit board assembly): PCB information, BOM, (Testing documents...)
2. What file formats do you accept for PCB PCBA production?
Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
3. What kind of documents/files do you need for quotation? For PCBA project, please send us your Gerber files, BOM(bill of material),and pcb specification.
For plastic enclosure/junction box/shell, please send us your 3D drawing,and material.
For ODM/Engineer Development service, please consult our sales engineer for more details.
4. How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.
